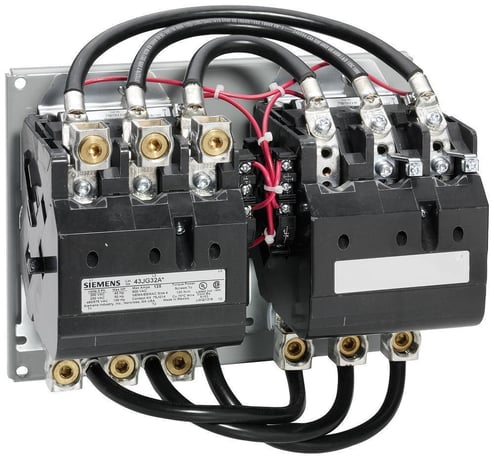

Siemens 43JG32AC 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing NEMA Contactor, 190 to 220 VAC, 380 to 440 VAC, 220 to 240 VAC, 440 to 480 VAC Coil, 135 A, 3NO Contact, 3 Poles
Siemens 43JG32AC 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing NEMA Contactor, 190 to 220 VAC, 380 to 440 VAC, 220 to 240 VAC, 440 to 480 VAC Coil, 135 A, 3NO Contact, 3 Poles
MPN 43JG32AC
ASPN SIE43JG32AC
UPC 783087654181
Description
Features
- Dual voltage coil
- 190 to 220 VAC, 380 to 440 VAC at 50 Hz, 220 to 240 VAC, 440 to 480 VAC at 60 Hz coil voltage
Specifications
GTIN: 00783087654181
UNSPSC: 39121529
Country of Origin: Mexico
| Number of Poles | 3 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Mounting Type | Surface |
| BABA Compliant | No |
| Enclosure Type | Open |
| Coil Power Rating | 22 W |
| Operating Temperature | -4 to 104 deg F |
| Type | 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing |
| Coil Voltage | 190 to 220 VAC, 380 to 440 VAC, 220 to 240 VAC, 440 to 480 VAC |
| Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Operating Cycles | 5000000 |
| Weight | 4.6 lbs |
| Number of Auxiliary Contacts | 2NO-2NC |
| Terminal Type | Box Lug/Screw |
| Maximum Load Current | 135 A |
| Dimensions | 8.5 in H x 12.75 in W x 6.22 in D |
| Contact Configuration | 3NO |
| Wattage | 510 VA Pickup, 51 VA Holding |
| Size | S4 |
| Sold as | EACH |
