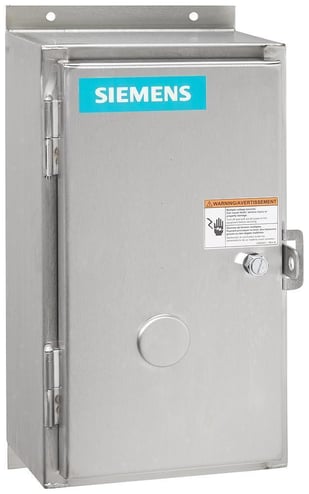

Siemens 40GP32WF 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination NEMA Contactor, 110/120 VAC Coil, 60 A, 3NO Contact, 3 Poles
Siemens 40GP32WF 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination NEMA Contactor, 110/120 VAC Coil, 60 A, 3NO Contact, 3 Poles
MPN 40GP32WF
ASPN SIE40GP32WF
UPC 783087566996
Description
Features
- Half size controller
- 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
Specifications
GTIN: 00783087566996
UNSPSC: 39121529
Alternative Part Number: 7579001
Country of Origin: United States of America (the)
| Number of Poles | 3 |
|---|---|
| Mounting Type | Surface |
| BABA Compliant | No |
| Weight | 0.6 lbs |
| Frequency Rating | 50/60 Hz |
| Wattage | 218 VA Pickup, 25 VA Holding |
| Terminal Type | Box Lug/Screw |
| Type | 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination |
| Operating Temperature | -4 to 104 deg F |
| Coil Power Rating | 8.6 W |
| Size | S2-1/2 |
| Dimensions | 16 in H x 8 in W x 6 in D |
| Coil Voltage | 110/120 VAC |
| Material | 304 Stainless Steel |
| Contact Configuration | 3NO |
| Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Operating Cycles | 10000000 |
| Maximum Load Current | 60 A |
| Enclosure Type | NEMA 4/4X |
| Number of Auxiliary Contacts | 1NO |
| Sold as | EACH |
