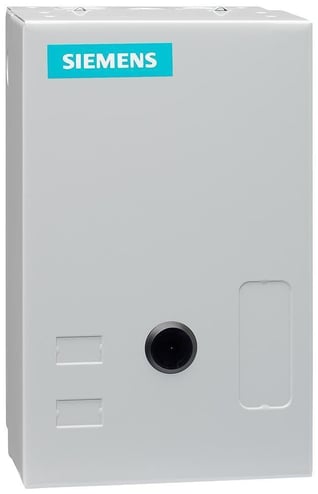

Siemens 40CP12BG 1-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination NEMA Contactor, 190 to 220 VAC, 220 to 240 VAC Coil, 18 A, 2NO Contact, 2 Poles


Description

Siemens NEMA Contactor, 1-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination, 190 to 220 VAC, 220 to 240 VAC Coil, 18 A Maximum Load Current, 8.6 W Coil Power Rating, 2 Poles, 50/60 Hz, 218 VA Pickup, 25 VA Holding, 2NO, 1NO Auxiliary Contacts, 10 A at 600 VAC, 5 A at 600 VDC Contact, S0, Screw Terminal, NEMA 1, 10000000 Operating Cycles, -4 to 104 deg F Operating, Surface Mount, 11 in H x 7 in W x 5 in D

Features

  • Gravity dropout contacts
  • 45 deg wedge action contacts
  • Self-rising pressure type control terminals
  • Encapsulated coil
  • 190 to 220 VAC at 50 Hz, 220 to 240 VAC at 60 Hz coil voltage

Specifications

GTIN: 00887621374211

UNSPSC: 39121529

Country of Origin: United States of America (the)

Operating Temperature
-4 to 104 deg F
Terminal Type
Screw
Maximum Load Current
18 A
Number of Poles
2
Wattage
218 VA Pickup, 25 VA Holding
Frequency Rating
50/60 Hz
Size
S0
Width
9 in
Enclosure Type
NEMA 1
Dimensions
11 in H x 7 in W x 5 in D
Mounting Type
Surface
Contact Rating
10 A at 600 VAC, 5 A at 600 VDC
Operating Cycles
10000000
Number of Auxiliary Contacts
1NO
BABA Compliant
No
Contact Configuration
2NO
Coil Voltage
190 to 220 VAC, 220 to 240 VAC
Coil Power Rating
8.6 W
Type
1-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination
Sold as
EACH
