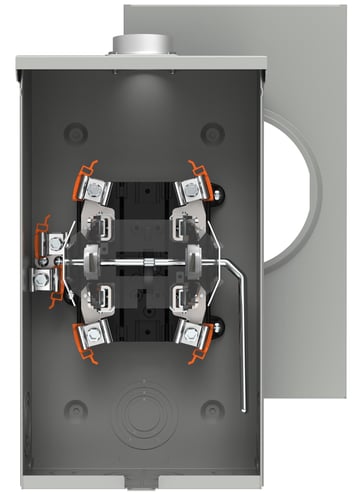

Siemens TALON 40824-02 Type HQ Continuous Duty Meter Socket With Lever Bypass and Hub, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Siemens TALON 40824-02 Type HQ Continuous Duty Meter Socket With Lever Bypass and Hub, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
MPN 40824-02
ASPN SIE4082402
UPC 783643187757
Description
Features
- Silver brazed meter jaw
- 100% rated lever bypass with clamping action on meter
- Field addable 5th terminal
- Plated copper current path
- Constructed of 16 ga G90 galvanized steel and coated with light gray polyester powder coat finish for maximum corrosion protection
- Latches are made from series 300 stainless steel
- Glass fiber reinforced polyester, high strength arc and track-resistant block assembly
- Lever operated jaw release, moving lever up bypasses meter and releases pressure on meter jaw
- Cover cannot be replaced with lever in bypass position
- Terminals are type HQ-4G and HQ-4GU are lay-in type with dome point screw
- Track-resistant polycarbonate insulating safety shield provides added protection from accidental shorts and shocks
Specifications
GTIN: 00783643187757
UNSPSC: 39121102
Country of Origin: Mexico
| Type | Type HQ Continuous Duty |
|---|---|
| Terminal Type | Lug |
| Wire Size | 6 AWG to 350 kcmil |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC |
| Weight | 0.6 lbs |
| Feed Type | Overhead |
| Enclosure Type | NEMA 3R |
| Dimensions | 19 in H x 13 in W x 5.2 in D |
| Cover Type | Ringless |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Phase | 1 |
| Hub Size | 2 in |
| Amperage Rating | 200 A |
| BABA Compliant | No |
| Sold as | EACH |
