Description

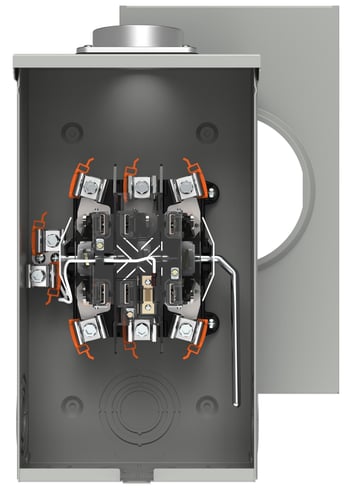

Siemens TALON® Meter Socket, 5-Cutout 1-Position Type HQU, 600 VAC, 200 A, 3 ph, Overhead Feed, 7 Jaws, 6 AWG to 350 kcmil Wire, 3 in Hub, Ringless Cover, Lay-in Lug Terminal, Surface Mounting, 22 in H x 13 in W x 5 in D Dimensions
Features
- With hub and lever bypass
- Silver brazed connections
- 100% rated lever bypass with clamping action on meter
- Steel construction
- Glass filled polyester block construction
- Track-resistant lexan shield
- Plated copper current path
Specifications
GTIN: 00783643180505
UNSPSC: 39121102
Country of Origin: Mexico
| Type | 5-Cutout 1-Position Type HQU |
|---|---|
| Terminal Type | Lay-in Lug |
| Wire Size | 6 AWG to 350 kcmil |
| Voltage Rating | 600 V AC |
| Width | 10.1 in |
| Feed Type | Overhead |
| Dimensions | 22 in H x 13 in W x 5 in D |
| Cover Type | Ringless |
| Mounting Type | Surface |
| Number of Jaws | 7 |
| Phase | 3 |
| Hub Size | 3 in |
| Amperage Rating | 200 A |
| BABA Compliant | No |
| Sold as | EACH |
