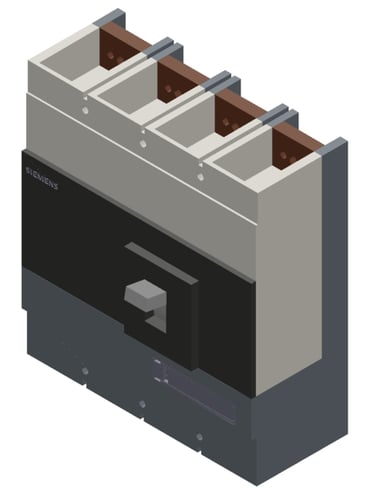

Siemens 3VL57631TH460AA0 3VL5 Molded Case Circuit Breaker, 415 VAC, 630 A, 55 kA Interrupt, 4 Poles, ElectronicLSING Trip
Siemens 3VL57631TH460AA0 3VL5 Molded Case Circuit Breaker, 415 VAC, 630 A, 55 kA Interrupt, 4 Poles, ElectronicLSING Trip
MPN 3VL57631TH460AA0
ASPN SIE3VL57631TH460AA0
UPC 40892899931
Description
Features
- The compact design of the 3VL molded case circuit breakers coupled with excellent characteristics fulfills the high demands of todays electrical distribution systems
- These circuit breakers offer a broad product range, improved technology, space savings and easy operation
- The use of modern communication capable circuit breakers opens up completely new possibilities in terms of start-up, parameterization, diagnostics, maintenance and operation
- Timely information and response can prevent plant stoppages
- Effective diagnostics management
- Fast and reliable parameterization
Specifications
GTIN: 00040892899931
UNSPSC: 39121601
Country of Origin: Germany
| Trip Type | Electronic |
|---|---|
| Interrupt Rating | 55 kA |
| Number of Poles | 4 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 415 V AC |
| Weight | 1 lbs |
| Width | 2.8 in |
| Enclosure Type | IP20 |
| Dimensions | 279.5 mm H x 253.5 mm W x 138.5 mm D |
| Mounting Type | Fixed |
| Series | 3VL5 |
| Amperage Rating | 630 A |
| Temperature Rating | 50 deg C |
| BABA Compliant | No |
| Sold as | EACH |
