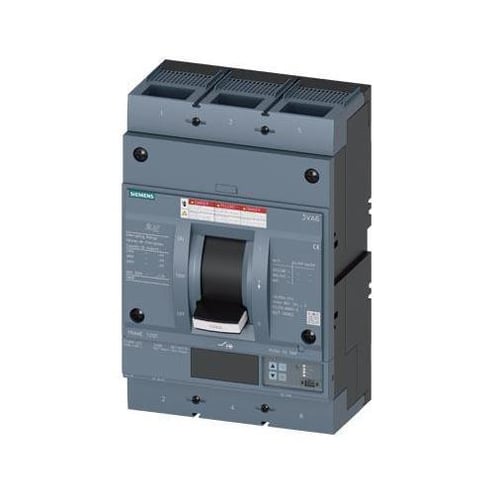

Siemens 3VA6610-7KQ32-0AA0 Sentron UL Molded Case Circuit Breaker, 480, 600 V, 1000 A, 35kAIC at 600V, 100kAIC at 480V Interrupt, 3 Poles, Electronic Trip
Siemens 3VA6610-7KQ32-0AA0 Sentron UL Molded Case Circuit Breaker, 480, 600 V, 1000 A, 35kAIC at 600V, 100kAIC at 480V Interrupt, 3 Poles, Electronic Trip
MPN 3VA6610-7KQ32-0AA0
ASPN SIE3VA66107KQ320AA0
UPC 804766980800
Description
Features
- 3VA66 frame with medium high (class C) breaking capacity
- Connection with lug terminal/nut keeper
Specifications
GTIN: 00804766980800
UNSPSC: 39121601
Country of Origin: Czechia
| Type | UL Molded Case |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 35kAIC at 600V, 100kAIC at 480V |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 0 |
| Frequency Rating | 50 to 60 Hz |
| Voltage Rating | 480/600 V |
| Weight | 6.2 lbs |
| Enclosure Type | IP40 |
| Dimensions | 12.5 in H x 8.3 in W x 12.5 in D |
| Trip Range | 1500 to 10000 A |
| Series | Sentron |
| Connection Type | Lug Terminal/Nut Keeper |
| Amperage Rating | 1000 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA66 1000 A |
| BABA Compliant | No |
| Sold as | EACH |
