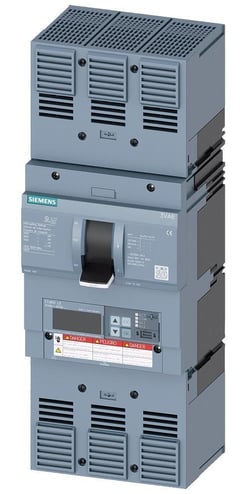

Sentron 3VA64606KP360AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 600 A, 22 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, ETU850 Electronic Trip
Sentron 3VA64606KP360AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 600 A, 22 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, ETU850 Electronic Trip
MPN 3VA64606KP360AA0
ASPN SIE3VA64606KP360AA0
UPC 804766721960
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766721960
UNSPSC: 39121616
Alternative Part Number: 16985075
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 VAC |
| Enclosure Type | IP40 |
| Connection Type | Aluminum Lug/Line/Load Side |
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Amperage Rating | 600 A |
| Trip Range | 900 to 5400 A |
| Dimensions | 5.4 in W x 4.3 in D x 9.8 in H |
| Width | 3.3 in |
| Interrupt Rating | 22 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V |
| Trip Type | ETU850 Electronic |
| Frame | 3VA64 600 A |
| Sold as | EACH |
