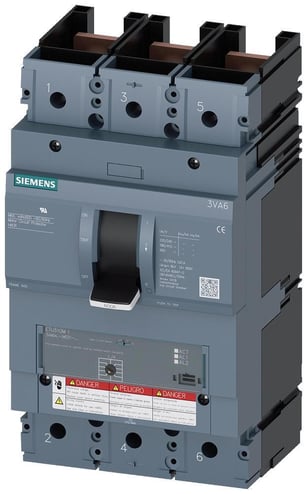

Sentron™ 3VA64401MS350AA0 Low Voltage Motor Circuit Protector, 600 VAC, 400 A, 100 kA at 480 V Interrupt, 3 Poles, ETU310M Electronic Trip


Description

Sentron™ Motor Circuit Protector, Low Voltage, 600 VAC, 400 A, 50/60 Hz Frequency, 100 kA at 480 V Interrupt, 3VA64 600 A Frame, ETU310M Electronic Trip, 1200 to 5200 A Trip, 3 Poles, Aluminum Lug/Line Side Connection, IP40 Enclosure, -25 to 70 deg C, 5.4 in W x 4.3 in D x 9.8 in H Dimensions

Siemens new 3VA Molded Case Circuit Breakers offer safe, efficient and variable application options for low and medium voltage power distribution whether in industrial applications, infrastructure or buildings. The 3VA range of Molded Case Circuit Breakers provides UL frame sizes covering 125 A to 1000 A with the 3VA5 (thermal magnetic trip unit) and 3VA6 (electronic trip unit) models, as well as IEC frame sizes covering 100 A to 630 A with the 3VA1 and 3VA2 models.

Features

  • Compliance with global standards and certifications
  • Minimum space requirement thanks to the compact design
  • Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
  • Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
  • Minimal effort for planning and configuration as a result of extensive CAD data
  • Knowledge manager- technical information on a specific device can be accessed directly via QR code
  • Without auxiliary releases and auxiliary alarm switches

Specifications

GTIN: 00195125102569

UNSPSC: 39121601

Alternative Part Number: 16906011

Type
Low Voltage
Trip Type
ETU310M Electronic
Interrupt Rating
100 kA at 480 V
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
600 VAC
Weight
5.8 lbs
Width
1.8 in
Enclosure Type
IP40
Dimensions
5.4 in W x 4.3 in D x 9.8 in H
Trip Range
1200 to 5200 A
Amperage Rating
400 A
Temperature Rating
-25 to 70 deg C
Frame
3VA64 600 A
BABA Compliant
No
Connection Type
Aluminum Lug/Line Side
Sold as
EACH
