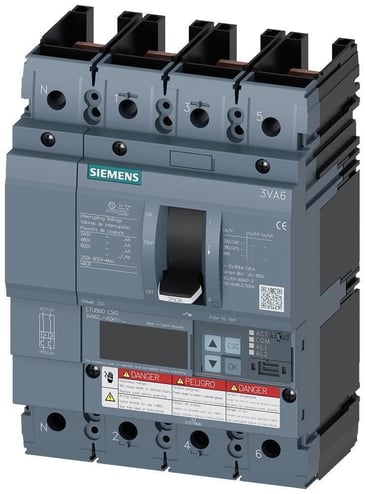

Sentron 3VA62105KQ410AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 100 A, 18 kA at 600 V, 600 Y347 V, 35 kA at 480 V, 100 kA at 240 V Interrupt, 4 Poles, ETU860 Electronic Trip
Sentron 3VA62105KQ410AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 100 A, 18 kA at 600 V, 600 Y347 V, 35 kA at 480 V, 100 kA at 240 V Interrupt, 4 Poles, ETU860 Electronic Trip
MPN 3VA62105KQ410AA0
ASPN SIE3VA62105KQ410AA0
UPC 804766311321
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
- Without lug terminal
Specifications
GTIN: 00804766311321
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 18 kA at 600 V, 600 Y/347 V, 35 kA at 480 V, 100 kA at 240 V |
| Number of Poles | 4 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC |
| Width | 8 in |
| Enclosure Type | IP40 |
| Dimensions | 5.5 in W x 3.4 in D x 7.8 in H |
| Trip Range | 150 to 1200 A |
| Amperage Rating | 100 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA62 250 A |
| BABA Compliant | No |
| Sold as | EACH |
