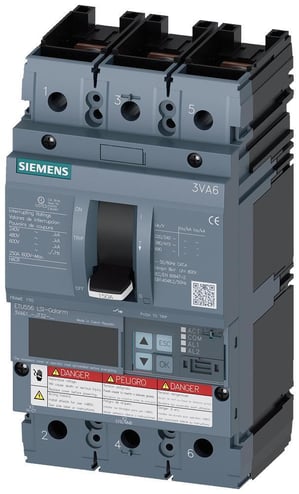

Sentron 3VA61108JT320AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 100 A, 50 kA at 600 V, 150 kA at 480 V, 200 kA at 240 V Interrupt, 3 Poles, ETU556 Electronic Trip
Sentron 3VA61108JT320AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 100 A, 50 kA at 600 V, 150 kA at 480 V, 200 kA at 240 V Interrupt, 3 Poles, ETU556 Electronic Trip
MPN 3VA6110-8JT32-0AA0
ASPN SIE3VA61108JT320AA0
UPC 804766761478
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766761478
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 50 kA at 600 V, 150 kA at 480 V, 200 kA at 240 V |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC |
| Weight | 0.5 lbs |
| Width | 10 in |
| Enclosure Type | IP40 |
| Dimensions | 4.1 in W x 3.4 in D x 7.8 in H |
| Trip Range | 150 to 1200 A |
| Connection Type | Line/Load Side/Lug Terminal/Nut Keeper |
| Amperage Rating | 100 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA61 150 A |
| BABA Compliant | No |
| Sold as | EACH |
