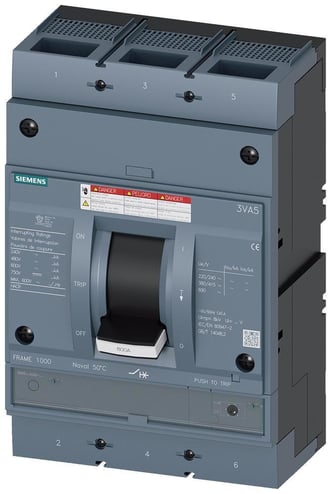

Siemens 3VA5560-6EC32-1AA0 Sentron UL Molded Case Circuit Breaker, 480, 600 V, 600 A, 22 kAIC at 600 V, 65 kAIC at 480 V Interrupt, 3 Poles, Thermal Magnetic Trip
Siemens 3VA5560-6EC32-1AA0 Sentron UL Molded Case Circuit Breaker, 480, 600 V, 600 A, 22 kAIC at 600 V, 65 kAIC at 480 V Interrupt, 3 Poles, Thermal Magnetic Trip
MPN 3VA5560-6EC32-1AA0
ASPN SIE3VA55606EC321AA0
UPC 804766978319
Description
Features
- 3VA55 frame with medium (class H) breaking capacity
- Connection with lug terminal/nut keeper
Specifications
GTIN: 00804766978319
UNSPSC: 39121601
Country of Origin: Czechia
| Type | UL Molded Case |
|---|---|
| Trip Type | Thermal Magnetic |
| Interrupt Rating | 22 kAIC at 600 V, 65 kAIC at 480 V |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 0 |
| Frequency Rating | 50 to 60 Hz |
| Voltage Rating | 480/600 V |
| Enclosure Type | IP40 |
| Dimensions | 12.5 in H x 8.3 in W x 5.8 in D |
| Mounting Type | Fixed/Adjustable |
| Series | Sentron |
| Connection Type | Lug Terminal/Nut Keeper |
| Amperage Rating | 600 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA55 800 A |
| BABA Compliant | No |
| Sold as | EACH |
