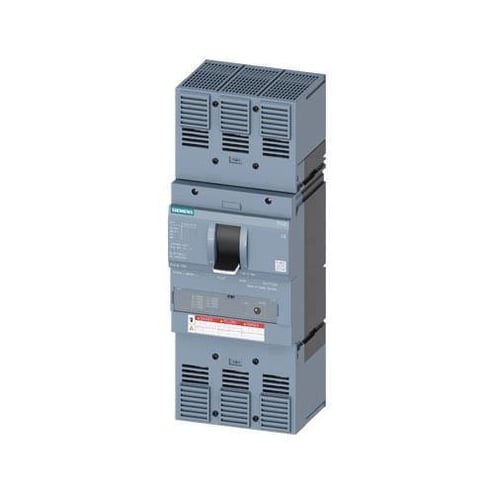

Sentron 3VA54500MH360AA0 Low Voltage Motor Circuit Protector, 600 VAC, 500 A, 65 kA at 480 V Interrupt, 3 Poles, TM120M Thermal Magnetic Trip
Sentron 3VA54500MH360AA0 Low Voltage Motor Circuit Protector, 600 VAC, 500 A, 65 kA at 480 V Interrupt, 3 Poles, TM120M Thermal Magnetic Trip
MPN 3VA54500MH360AA0
ASPN SIE3VA54500MH360AA0
UPC 804766803697
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766803697
UNSPSC: 39121601
Alternative Part Number: 16985614
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 VAC |
| Enclosure Type | IP40 |
| Dimensions | 5.4 in W x 4.3 in D x 9.8 in H |
| Trip Range | 4000 to 6000 A |
| Connection Type | Aluminum Lug/Line/Load Side |
| Amperage Rating | 500 A |
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Interrupt Rating | 65 kA at 480 V |
| Trip Type | TM120M Thermal Magnetic |
| Frame | 3VA54 600 A |
| Sold as | EACH |
