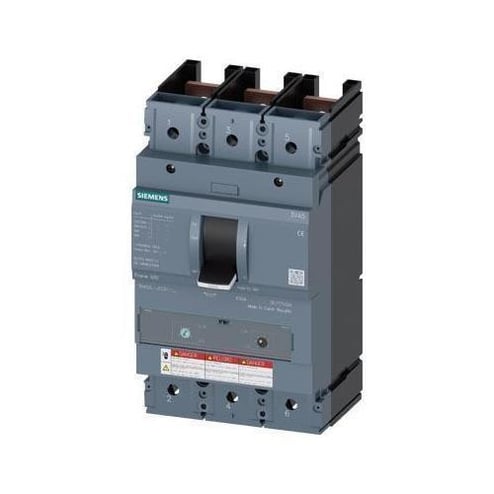

Sentron 3VA53257EC310AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 250 A, 35 kA at 600 V, 100 kA at 480 V, 200 kA at 240 V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip
Sentron 3VA53257EC310AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 250 A, 35 kA at 600 V, 100 kA at 480 V, 200 kA at 240 V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip
MPN 3VA53257EC310AA0
ASPN SIE3VA53257EC310AA0
UPC 804766793523
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
- Without lug terminal
Specifications
GTIN: 00804766793523
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | TM230 Thermal Magnetic |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 VAC/500 VDC |
| Enclosure Type | IP40 |
| Dimensions | 5.4 in W x 4.3 in D x 9.8 in H |
| Amperage Rating | 250 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA53 400 A |
| BABA Compliant | No |
| Trip Range | 1250 to 2500 A |
| Interrupt Rating | 35 kA at 600 V, 100 kA at 480 V, 200 kA at 240 V |
| Sold as | EACH |
