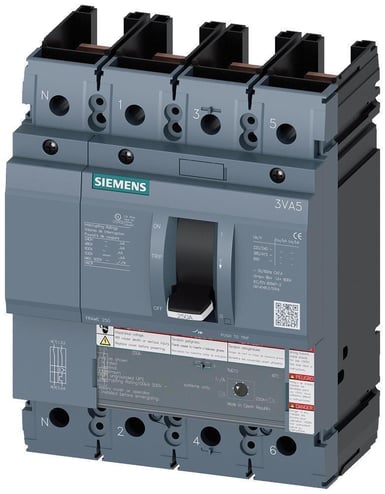

Sentron 3VA52257ED410AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC1000 VDC, 250 A, 35 kA at 600 Y347 V, 100 kA at 480 V, 200 kA at 240 V Interrupt, 4 Poles, TM210 Thermal Magnetic Trip
Sentron 3VA52257ED410AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC1000 VDC, 250 A, 35 kA at 600 Y347 V, 100 kA at 480 V, 200 kA at 240 V Interrupt, 4 Poles, TM210 Thermal Magnetic Trip
MPN 3VA52257ED410AA0
ASPN SIE3VA52257ED410AA0
UPC 804766810725
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
- Without lug terminal
Specifications
GTIN: 00804766810725
UNSPSC: 39121616
Alternative Part Number: 16870824
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | TM210 Thermal Magnetic |
| Interrupt Rating | 35 kA at 600 Y/347 V, 100 kA at 480 V, 200 kA at 240 V |
| Frequency Rating | 50/60 Hz |
| Weight | 0.2 lbs |
| Enclosure Type | IP40 |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA52 250 A |
| BABA Compliant | No |
| Amperage Rating | 250 A |
| Trip Range | 2500 A |
| Dimensions | 5.5 in W x 3.3 in D x 7.3 in H |
| Voltage Rating | 600 VAC/1000 VDC |
| Number of Poles | 4 |
| Sold as | EACH |
