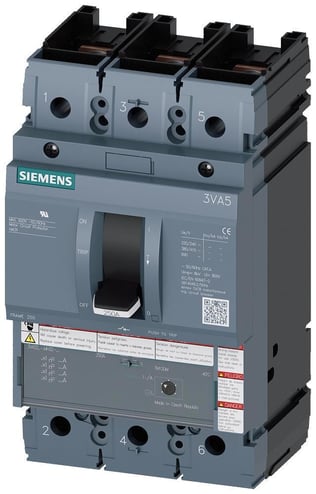

Sentron 3VA52150MH320AA0 Low Voltage Motor Circuit Protector, 600 VAC, 150 A, 65 kA at 480 V Interrupt, 3 Poles, TM120M Thermal Magnetic Trip
Sentron 3VA52150MH320AA0 Low Voltage Motor Circuit Protector, 600 VAC, 150 A, 65 kA at 480 V Interrupt, 3 Poles, TM120M Thermal Magnetic Trip
MPN 3VA5215-0MH32-0AA0
ASPN SIE3VA52150MH320AA0
UPC 804766716669
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766716669
UNSPSC: 39121601
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC |
| Enclosure Type | IP40 |
| Dimensions | 4.1 in W x 3.3 in D x 7.3 in H |
| Connection Type | Line/Load Side/Lug Terminal/Nut Keeper |
| Amperage Rating | 150 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA52 250 A |
| BABA Compliant | No |
| Trip Range | 750 to 1800 A |
| Width | 4.3 in |
| Interrupt Rating | 65 kA at 480 V |
| Sold as | EACH |
