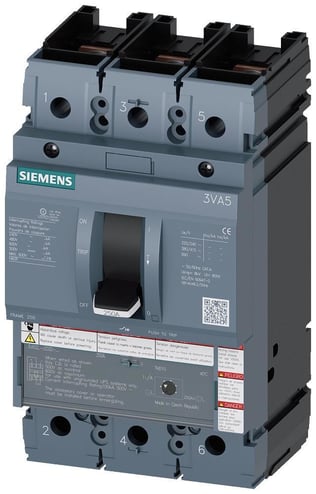

Sentron 3VA52106ED320AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC750 VDC, 100 A, 25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
Sentron 3VA52106ED320AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC750 VDC, 100 A, 25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
MPN 3VA52106ED320AA0
ASPN SIE3VA52106ED320AA0
UPC 804766716041
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766716041
UNSPSC: 39121616
Alternative Part Number: 16984575
Country of Origin: Czechia
| Number of Poles | 3 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Amperage Rating | 100 A |
| Connection Type | Line/Load Side/Lug Terminal/Nut Keeper |
| Trip Range | 1000 A |
| Type | Low Voltage |
| Trip Type | TM210 Thermal Magnetic |
| Voltage Rating | 600 VAC/750 VDC |
| Dimensions | 4.1 in W x 3.3 in D x 7.3 in H |
| Frame | 3VA52 250 A |
| Interrupt Rating | 25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V |
| Weight | 42 lbs |
| Width | 4.1 in |
| Enclosure Type | IP40 |
| Sold as | EACH |
