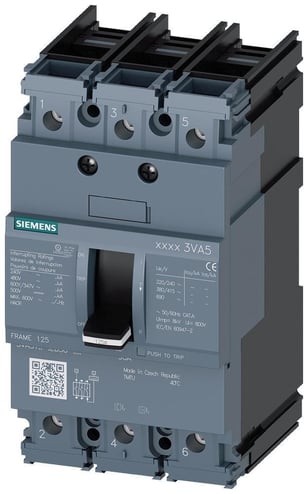

Sentron 3VA51956ED300DD0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 15 A, 25 kA at 600 Y347 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
Sentron 3VA51956ED300DD0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 15 A, 25 kA at 600 Y347 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
MPN 3VA5195-6ED30-0DD0
ASPN SIE3VA51956ED300DD0
UPC 195125102552
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
Specifications
GTIN: 00195125102552
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Interrupt Rating | 25 kA at 600 Y/347 V, 65 kA at 480 V, 100 kA at 240 V |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC/500 V DC |
| Enclosure Type | IP40 |
| Dimensions | 3 in W x 3 in D x 5-1/2 in H |
| Trip Range | 300 A |
| Connection Type | Box Terminal |
| Amperage Rating | 15 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA51 125 A |
| BABA Compliant | No |
| Sold as | EACH |
