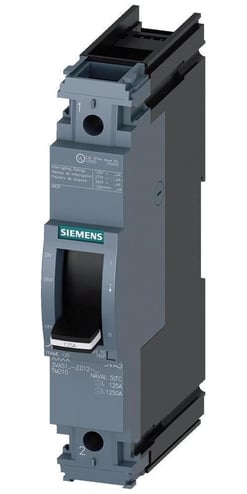

Sentron 3VA51804ED121AA0 Low Voltage Molded Case Circuit Breaker, 347 VAC, 80 A, 14 kA at 347 V, 25 kA at 277 V, 65 kA at 120 V Interrupt, 1 Pole, TM210 Thermal Magnetic Trip
Sentron 3VA51804ED121AA0 Low Voltage Molded Case Circuit Breaker, 347 VAC, 80 A, 14 kA at 347 V, 25 kA at 277 V, 65 kA at 120 V Interrupt, 1 Pole, TM210 Thermal Magnetic Trip
MPN 3VA5180-4ED12-1AA0
ASPN SIE3VA51804ED121AA0
UPC 804766887390
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766887390
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Interrupt Rating | 14 kA at 347 V, 25 kA at 277 V, 65 kA at 120 V |
| Number of Poles | 1 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 347 V AC |
| Enclosure Type | IP40 |
| Dimensions | 1 in W x 3 in D x 5-1/2 in H |
| Trip Range | 800 A |
| Connection Type | Line/Load Side/Lug Terminal/Nut Keeper |
| Amperage Rating | 80 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA51 125 A |
| BABA Compliant | No |
| Sold as | EACH |
