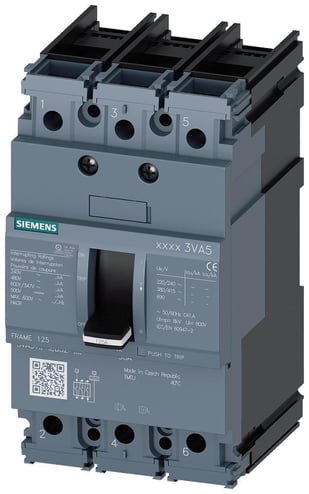

Sentron 3VA51506ED320AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 50 A, 25 kA at 600 Y347 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
Sentron 3VA51506ED320AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 50 A, 25 kA at 600 Y347 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
MPN 3VA5150-6ED32-0AA0
ASPN SIE3VA51506ED320AA0
UPC 804766885099
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766885099
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Interrupt Rating | 25 kA at 600 Y/347 V, 65 kA at 480 V, 100 kA at 240 V |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC/500 V DC |
| Weight | 2.9 lbs |
| Width | 4.7 in |
| Enclosure Type | IP40 |
| Dimensions | 3 in W x 3 in D x 5-1/2 in H |
| Trip Range | 500 A |
| Connection Type | Line/Load Side/Lug Terminal/Nut Keeper |
| Amperage Rating | 50 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA51 125 A |
| BABA Compliant | No |
| Sold as | EACH |
