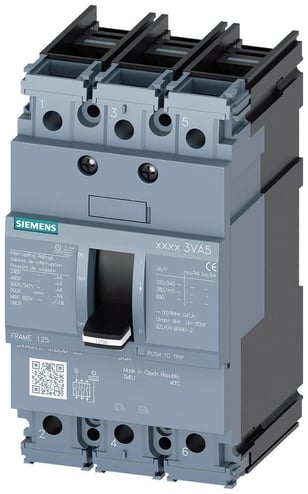

Sentron 3VA51505ED360AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 50 A, 18 kA at 600 Y347 V, 35 kA at 480 V, 85 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
Sentron 3VA51505ED360AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC500 VDC, 50 A, 18 kA at 600 Y347 V, 35 kA at 480 V, 85 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
MPN 3VA5150-5ED36-0AA0
ASPN SIE3VA51505ED360AA0
UPC 804766831980
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766831980
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Interrupt Rating | 18 kA at 600 Y/347 V, 35 kA at 480 V, 85 kA at 240 V |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC/500 V DC |
| Enclosure Type | IP40 |
| Dimensions | 3 in W x 3 in D x 5-1/2 in H |
| Trip Range | 500 A |
| Connection Type | Aluminum Lug/Line/Load Side |
| Amperage Rating | 50 A |
| Volume | 4382.2 cubic inches |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA51 125 A |
| BABA Compliant | No |
| Sold as | EACH |
