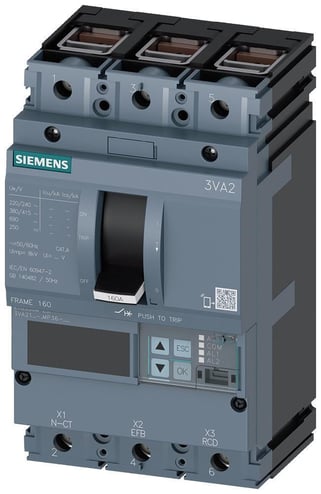

Sentron 3VA21635MP360AA0 Low Voltage Motor Circuit Protector, 690 VAC, 63 A, 2.5 kA at 690 V, 36 kA at 500 V, 55 kA at 415440 V, 85 kA at 240 V Interrupt, 3 Poles, ETU550M Electronic Trip
Sentron 3VA21635MP360AA0 Low Voltage Motor Circuit Protector, 690 VAC, 63 A, 2.5 kA at 690 V, 36 kA at 500 V, 55 kA at 415440 V, 85 kA at 240 V Interrupt, 3 Poles, ETU550M Electronic Trip
MPN 3VA21635MP360AA0
ASPN SIE3VA21635MP360AA0
UPC 804766886188
Description
Features
- Compliance with global standards and certifications
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Minimum space requirement thanks to the compact design
Specifications
GTIN: 00804766886188
UNSPSC: 39121601
Alternative Part Number: 17064808, 16875899
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 VAC |
| Enclosure Type | IP40 |
| Dimensions | 4.1 in W x 3.4 in D x 7.1 in H |
| Amperage Rating | 63 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA21 IEC 160 A |
| BABA Compliant | No |
| Power Rating | 18500 W at 230 VAC, 30000 W at 400 VAC |
| Trip Range | 189 to 945 A |
| Wire Size | (1) 6 to 120 sq-mm |
| Trip Type | ETU550M Electronic |
| Interrupt Rating | 2.5 kA at 690 V, 36 kA at 500 V, 55 kA at 415/440 V, 85 kA at 240 V |
| Connection Type | Box Terminal/Cable/Steel Wrap Around Lug |
| Sold as | EACH |
