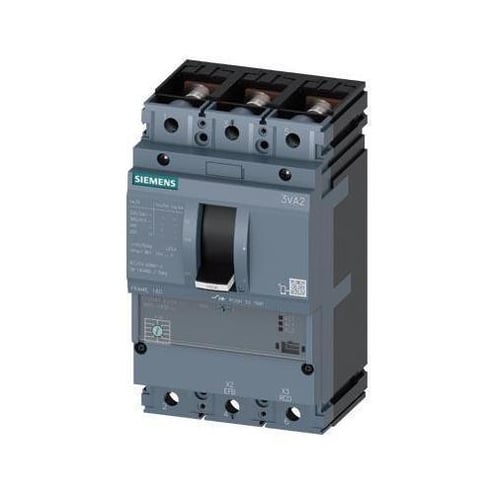

Sentron 3VA21635HK320AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 63 A, 10 kA at 690 V, 36 kA at 500 V, 55 kA at 415440 V, 85 kA at 240 V Interrupt, 3 Poles, ETU340 Electronic Trip
Sentron 3VA21635HK320AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 63 A, 10 kA at 690 V, 36 kA at 500 V, 55 kA at 415440 V, 85 kA at 240 V Interrupt, 3 Poles, ETU340 Electronic Trip
MPN 3VA21635HK320AA0
ASPN SIE3VA21635HK320AA0
UPC 804766436550
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766436550
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Weight | 2.3 lbs |
| Enclosure Type | IP40 |
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Amperage Rating | 63 A |
| Connection Type | Lug Terminal/Nut Keeper |
| Trip Range | 945 A |
| Dimensions | 4.1 in W x 3.4 in D x 7.1 in H |
| Interrupt Rating | 10 kA at 690 V, 36 kA at 500 V, 55 kA at 415/440 V, 85 kA at 240 V |
| Trip Type | ETU340 Electronic |
| Frame | 3VA21 IEC 160 A |
| Voltage Rating | 690 VAC |
| Sold as | EACH |
