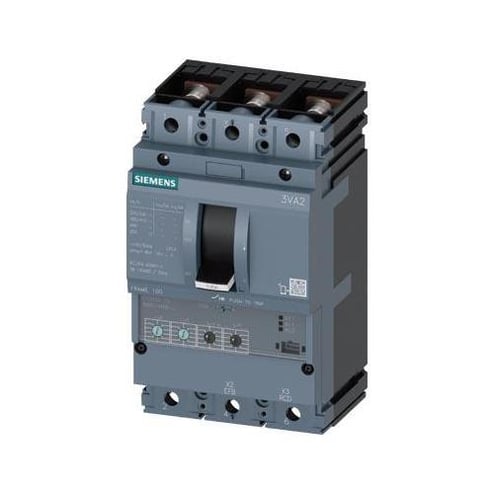

Sentron™ 3VA20258HN320AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 25 A, 18 kA at 690 V, 100 kA at 500 V, 150 kA at 415/440 V, 200 kA at 240 V Interrupt, 3 Poles, ETU350 Electronic Trip
Sentron™ 3VA20258HN320AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 25 A, 18 kA at 690 V, 100 kA at 500 V, 150 kA at 415/440 V, 200 kA at 240 V Interrupt, 3 Poles, ETU350 Electronic Trip
MPN 3VA20258HN320AA0
ASPN SIE3VA20258HN320AA0
UPC 804766442995
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766442995
UNSPSC: 39121616
Alternative Part Number: 16875082
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Weight | 0 |
| Connection Type | Lug Terminal/Nut Keeper |
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Amperage Rating | 25 A |
| Enclosure Type | IP40 |
| Voltage Rating | 690 VAC |
| Interrupt Rating | 18 kA at 690 V, 100 kA at 500 V, 150 kA at 415/440 V, 200 kA at 240 V |
| Frame | 3VA20 IEC 100 A |
| Trip Type | ETU350 Electronic |
| Dimensions | 4.1 in W x 3.4 in D x 7.1 in H |
| Trip Range | 300 A |
| Sold as | EACH |
