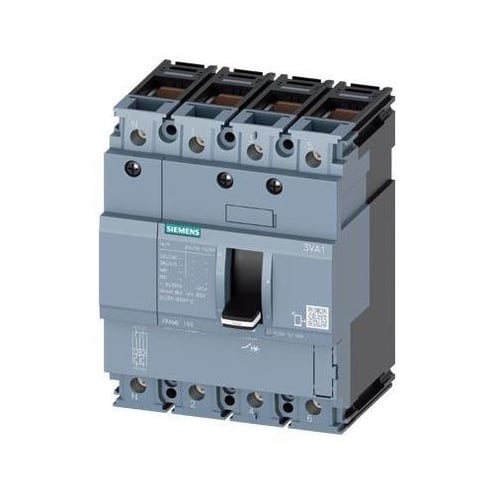

Sentron™ 3VA11805GD460AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC/600 VDC, 80 A, 5 kA at 500/690 V, 36 kA at 440 V, 55 kA at 415 V, 85 kA at 240 V Interrupt, 4 Poles, TM210 Thermal Magnetic Trip
Sentron™ 3VA11805GD460AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC/600 VDC, 80 A, 5 kA at 500/690 V, 36 kA at 440 V, 55 kA at 415 V, 85 kA at 240 V Interrupt, 4 Poles, TM210 Thermal Magnetic Trip
MPN 3VA11805GD460AA0
ASPN SIE3VA11805GD460AA0
UPC 804766422973
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766422973
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Wire Size | (1) 1.5 to 70 sq-mm |
| Interrupt Rating | 5 kA at 500/690 V, 36 kA at 440 V, 55 kA at 415 V, 85 kA at 240 V |
| Number of Poles | 4 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 V AC/600 V DC |
| Weight | 147.7 lbs |
| Width | 7.4 in |
| Enclosure Type | IP40 |
| Dimensions | 4 in W x 2.8 in D x 5.1 in H |
| Trip Range | 800 A |
| Connection Type | Box Terminal/Clamp/Steel Wrap Around Lug |
| Amperage Rating | 80 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA11 IEC 160 A |
| BABA Compliant | No |
| Sold as | EACH |
