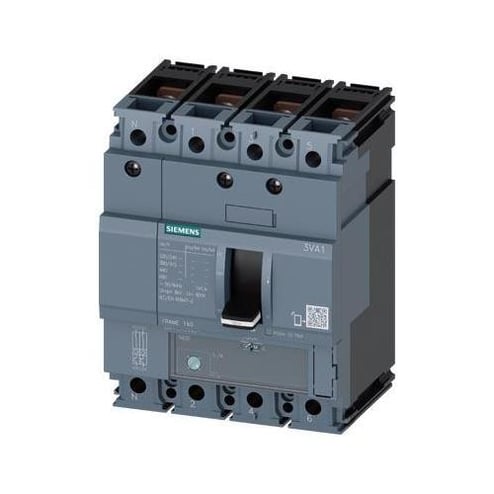

Sentron™ 3VA11164FE420AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC/600 VDC, 160 A, 5 kA at 500/690 V, 25 kA at 440 V, 36 kA at 415 V, 55 kA at 240 V Interrupt, 4 Poles, TM220 Thermal Magnetic Trip
Sentron™ 3VA11164FE420AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC/600 VDC, 160 A, 5 kA at 500/690 V, 25 kA at 440 V, 36 kA at 415 V, 55 kA at 240 V Interrupt, 4 Poles, TM220 Thermal Magnetic Trip
MPN 3VA11164FE420AA0
ASPN SIE3VA11164FE420AA0
UPC 804766428135
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766428135
UNSPSC: 39121616
Alternative Part Number: 16873990
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | TM220 Thermal Magnetic |
| Interrupt Rating | 5 kA at 500/690 V, 25 kA at 440 V, 36 kA at 415 V, 55 kA at 240 V |
| Number of Poles | 4 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 VAC/600 VDC |
| Weight | 0.4 lbs |
| Enclosure Type | IP40 |
| Connection Type | Lug Terminal/Nut Keeper |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA11 IEC 160 A |
| BABA Compliant | No |
| Width | 3.1 in |
| Amperage Rating | 160 A |
| Trip Range | 1600 A |
| Dimensions | 4 in W x 2.8 in D x 5.1 in H |
| Sold as | EACH |
