Description

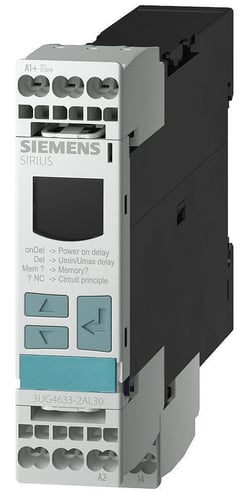

Siemens Monitoring Relay, 17 to 275 VAC/VDC, 50/60 Hz Frequency, 1CO Contact Configuration, Snap-On Mounting, Screw Terminal, LCD Display, 0.1 to 20 s Trip Delay, IP20 Enclosure, 92 mm H x 22.5 mm W x 91 mm D Dimensions
Features
- Digital monitoring relay voltage monitoring, 22.5 mm from 17 to 275 VAC/DC over- and undershoot internal power supply dc
- Hysteresis 0.1 to 150 VAC 1 changeover contact with or without error memory
- 10000000 mechanical cycles
Specifications
GTIN: 00754554931487
UNSPSC: 39122333
Country of Origin: Germany
| Terminal Type | Screw |
|---|---|
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 17 to 275 V AC/DC |
| Weight | 1.1 lbs |
| Width | 11.8 in |
| Trip Delay | 0.1 to 20 s |
| Enclosure Type | IP20 |
| Dimensions | 92 mm H x 22.5 mm W x 91 mm D |
| Mounting Type | Snap-On |
| Contact Configuration | 1CO |
| Display Type | LCD |
| BABA Compliant | No |
| Sold as | EACH |
