Description

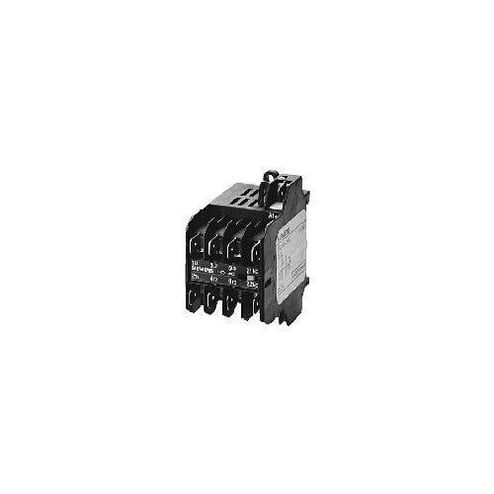

Siemens Power Relay, Heavy Duty, 4 kW Power, 24 VDC Coil, 3NO-1NC Contact Form, 8.4 A Contact, 4 Pole, Snap-On Mounting, Tab Terminal, IP00 Enclosure, 25 to 55 deg C, 62 mm H x 36 mm W x 61 mm D Dimensions
The 3TG10 power relays come as the ideal solution for all applications requiring small, low noise relays or contactors at low costs. The power relays are suitable for basic controls and particularly for use in large scale series devices and controls. They are ideal for applications which require only 1-auxiliary contact and no overload relay and place increased requirements upon switching capacity, switching voltage and service life.
Features
- Any mounting position, hum-free
- Safe isolation
- Integrated auxiliary switch
Specifications
GTIN: 00754554350042
UNSPSC: 39122324
Alternative Part Number: 7530826
| Type | Heavy Duty |
|---|---|
| Number of Poles | 4 |
| Weight | 0 |
| Width | 2.4 in |
| Enclosure Type | IP00 |
| Dimensions | 62 mm H x 36 mm W x 61 mm D |
| Coil Voltage | 24 VDC |
| Mounting Type | Snap-On |
| Power Rating | 4 kW |
| BABA Compliant | No |
| Contact Rating | 8.4 A |
| Temperature Rating | 25 to 55 deg C |
| Contact Form | 3NO-1NC |
| Terminal Type | Tab |
| Sold as | EACH |
