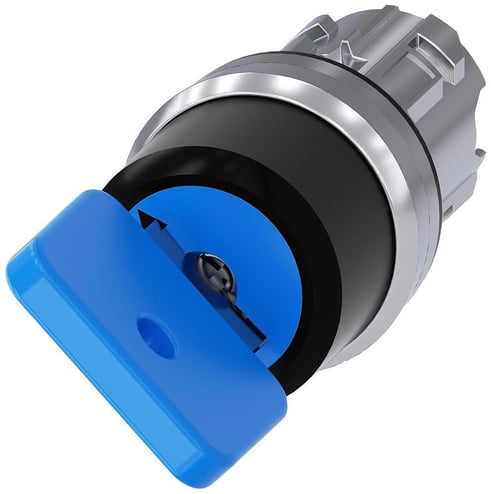

Siemens SIRIUS ACT 3SU10504GF110AA0 Non-Illuminated Round Switch Operator With Front Ring and (2) Keys, 22 mm, OMR 73038 KeyLatching Operator, 2 Positions, BlueSilver
Siemens SIRIUS ACT 3SU10504GF110AA0 Non-Illuminated Round Switch Operator With Front Ring and (2) Keys, 22 mm, OMR 73038 KeyLatching Operator, 2 Positions, BlueSilver
MPN 3SU10504GF110AA0
ASPN SIE3SU10504GF110AA0
UPC 804766184246
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- 90 deg (10:30 hr/13:30 hr)
- OMR 73038 Keyed
Specifications
GTIN: 00804766184246
UNSPSC: 39122224
Country of Origin: Czechia
| Type | Non-Illuminated Round |
|---|---|
| Color | Blue/Silver |
| Size | 22 mm |
| Weight | 10.4 lbs |
| Contact Mode | Maintained |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Number of Positions | 2 |
| Throw | 90 deg |
| Operator Type | Keyed |
| Series | 3SU10 |
| Material | Metal |
| Finish | High Gloss/Shiny |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Sold as | EACH |
