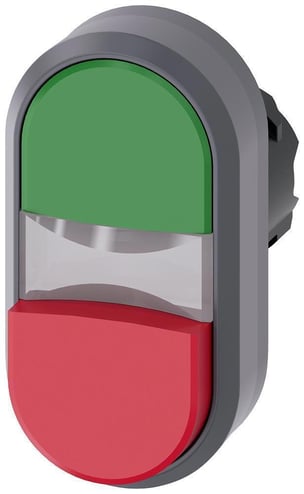

Siemens SIRIUS ACT 3SU10313BB420AA0 Illuminated Round Twin Pushbutton Operator With Front Ring, 22 mm, FlatRaised Button Operator, Momentary Contact, GreenRedSand Gray
Siemens SIRIUS ACT 3SU10313BB420AA0 Illuminated Round Twin Pushbutton Operator With Front Ring, 22 mm, FlatRaised Button Operator, Momentary Contact, GreenRedSand Gray
MPN 3SU10313BB420AA0
ASPN SIE3SU10313BB420AA0
UPC 804766066382
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
Specifications
GTIN: 00804766066382
UNSPSC: 39122216
Alternative Part Number: 13436159
Country of Origin: China
| Type | Illuminated Round Twin |
|---|---|
| Size | 22 mm |
| Contact Mode | Momentary |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Operator Type | Flat/Raised Button |
| Series | 3SU10 |
| Material | Plastic |
| Finish | Matte |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Color | Green/Red/Sand Gray |
| Sold as | EACH |
