Description

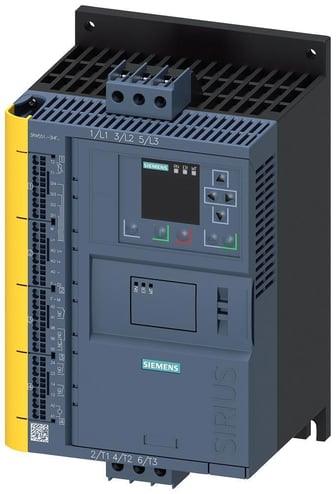

Siemens SIRIUS Failsafe Soft Starter, High Performance, Series: 3RW55, 200 to 480 VAC, 25 A, 50/60 Hz Frequency, 5.5 kW, 11 kW Wattage, 5 hp, 7-1/2 hp, 15 hp Motor, 110 to 250 VAC Coil, Automatic/Manual/Remote Reset, 3 ph, Spring Loaded Terminal Connection, B300/R300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down,-25 to 60 deg C Operating, 275 mm H x 170 mm W x 152 mm D Dimensions
Features
- Plug-in communication modules for PROFINET, PROFIBUS, Ethernet/IP and Modbus
- Removable HMI module with color display, local interface and slot for a micro SD memory card
- Extended protection functions
- Hybrid switching devices for minimum power loss and three-phase motor control for optimum/symmetrical motor control
- Pump stop for reduced mechanical loading and optimum pump stop control
Specifications
GTIN: 00195125038226
UNSPSC: 39121521
Country of Origin: Czechia
| Type | High Performance |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Auxiliary Contact Rating | B300/R300 |
| Wattage | 5.5 kW, 11 kW |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 200 to 480 V AC |
| Enclosure Type | IP00 |
| Dimensions | 275 mm H x 170 mm W x 152 mm D |
| Starting Modes | Ramp-Up/Ramp-Down |
| Motor Power | 5 hp, 7-1/2 hp, 15 hp |
| Coil Voltage | 110 to 250 V AC |
| Series | 3RW55 |
| Connection Type | Spring Loaded Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 25 A |
| BABA Compliant | No |
| Sold as | EACH |
