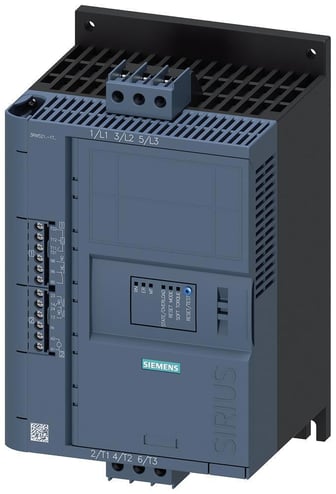

Siemens SIRIUS 3RW52141TC15 General Performance Soft Starter With Thermistor Motor Protection, 110 to 250 VAC V Coil, IP20 Enclosure
Siemens SIRIUS 3RW52141TC15 General Performance Soft Starter With Thermistor Motor Protection, 110 to 250 VAC V Coil, IP20 Enclosure
MPN 3RW52141TC15
ASPN SIE3RW52141TC15
UPC 804766687754
Description
Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 4 kW at 230 VAC, 7.5 kW at 400 VAC, 11 kW at 500 VAC 3-phase motor power
- 18 A at 40 deg C, 15.9 A at 50 deg C and 13.8 A at 60 deg C amperage rating
Specifications
GTIN: 00804766687754
UNSPSC: 39121521
Country of Origin: Czechia
| Type | General Performance |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Auxiliary Contact Rating | R300/B300 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 200 to 600 V AC |
| Weight | 56 lbs |
| Width | 0.4 in |
| Enclosure Type | IP20 |
| Dimensions | 275 mm H x 170 mm W x 152 mm D |
| Starting Modes | Ramp-Up/Ramp-Down |
| Motor Power | 4 kW, 7.5 kW, 11 kW |
| Coil Voltage | 110 to 250 V AC |
| Series | 3RW52 |
| Connection Type | Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 13.8/15.9/18 A |
| BABA Compliant | No |
| Sold as | EACH |
