Description

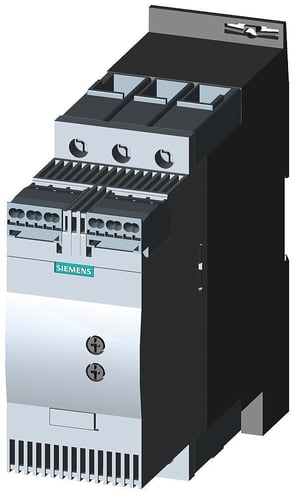

Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW30, 200 to 480 VAC, 60/62/72 A, 50 to 60 Hz Frequency, 22/37 kW Wattage, 20 hp, 40 hp Motor, 24 VAC/VDC Coil, 3 Pole, External Reset, 3 ph, Spring Loaded Terminal Connection, B300/R300 Auxiliary, Electronics Control, IP00 Enclosure, -25 to 60 deg C Operating, 55 mm W x 168 mm D x 144 mm H Dimensions
The SIRIUS 3RW30 basic performance soft starters are suitable for soft starting of 3-phase asynchronous motors. Due to 2-phase control, the current is kept at minimum values in all three phases throughout the entire start-up time and disturbing direct current components are eliminated in addition. This not only enables the 2-phase starting of motors up to 55 kW (at 400 VAC) but also avoids the current and torque peaks which occur e.g. with wye delta starters.
Features
- Space saving, clearly arranged control panel layout
- Simple and fast commissioning
- Reduction of power loss during operation
- Avoidance of direct current components in 2 ph controlled soft starters
- 20 hp at 200/260 VAC, 40 hp at 460 VAC motor power
Specifications
GTIN: 00754554958279
UNSPSC: 39121521
Country of Origin: Czechia
| Type | Basic Performance |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Control Type | Electronics |
| Number of Poles | 3 |
| Auxiliary Contact Rating | B300/R300 |
| Wattage | 22/37 kW |
| Frequency Rating | 50 to 60 Hz |
| Weight | 0 |
| Enclosure Type | IP00 |
| Dimensions | 55 mm W x 168 mm D x 144 mm H |
| Coil Voltage | 24 V AC/DC |
| Series | 3RW30 |
| Connection Type | Spring Loaded Terminal |
| Phase | 3 |
| Reset Type | External |
| BABA Compliant | No |
| Amperage Rating | 60/62/72 A |
| Motor Power | 20 hp, 40 hp |
| Voltage Rating | 200 to 480 V AC |
| Sold as | EACH |
