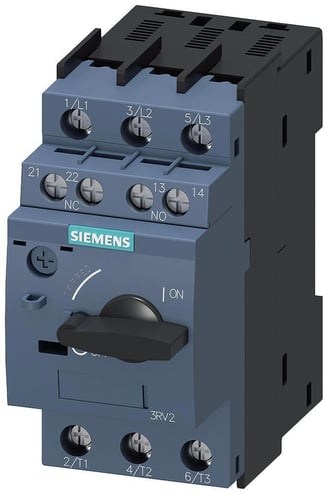

Siemens 3RV24111AA15 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 1.1 to 1.6 A, 100 kA Interrupt, 3 Poles, Magnetic Trip


Description

Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 1.1 to 1.6 A, 1.1 kW Power, 50 to 60 Hz Frequency, 100 kA Interrupt, S00 Frame, Magnetic Trip, 33 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 18 to 14 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Specifications

GTIN: 00662643922219

UNSPSC: 39121601

Country of Origin: Germany

Trip Type
Magnetic
Wire Size
18 to 14 AWG
Interrupt Rating
100 kA
Number of Poles
3
Auxiliary Contact Rating
1NO-1NC
Frequency Rating
50 to 60 Hz
Voltage Rating
690 V AC
Weight
8 lbs
Enclosure Type
IP20
Dimensions
97 mm H x 45 mm W x 96 mm D
Mounting Type
DIN Rail
Trip Range
33 A
Series
3RV2
Connection Type
Screw
Phase
3
Amperage Rating
1.1 to 1.6 A
Power Rating
1.1 kW
Temperature Rating
-20 to 60 deg C
Frame
S00
BABA Compliant
No
Sold as
EACH
