Description

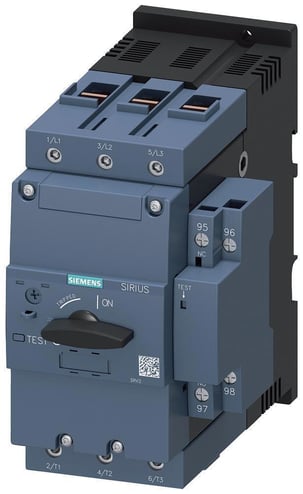

SIRIUS Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 75 to 93 A, 90 kW Power, 50 to 60 Hz Frequency, 3 kA Interrupt, S3 Frame, Magnetic Trip, 1300 A Trip, 3 Pole, 3 ph, Screw Connection, 20 to 16 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 165 mm H x 90 mm W x 176 mm D Dimensions
The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.
Features
- Class 10 trip
Specifications
GTIN: 00804766403774
UNSPSC: 39121521
Country of Origin: Germany
| Trip Type | Magnetic |
|---|---|
| Wire Size | 20 to 16 AWG |
| Interrupt Rating | 3 kA |
| Number of Poles | 3 |
| Frequency Rating | 50 to 60 Hz |
| Voltage Rating | 690 V AC |
| Enclosure Type | IP20 |
| Dimensions | 165 mm H x 90 mm W x 176 mm D |
| Mounting Type | DIN Rail |
| Trip Range | 1300 A |
| Series | 3RV2 |
| Connection Type | Screw |
| Phase | 3 |
| Amperage Rating | 75 to 93 A |
| Power Rating | 90 kW |
| Temperature Rating | -20 to 60 deg C |
| Frame | S3 |
| BABA Compliant | No |
| Sold as | EACH |
