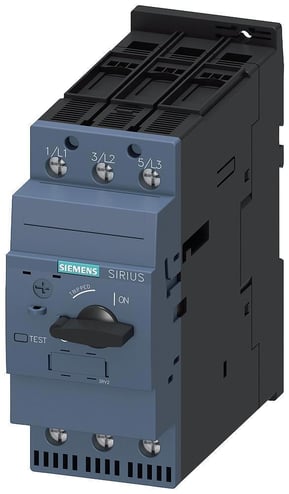

Siemens 3RV20324PA10 Motor Protection Circuit Breaker, 690 VAC, 28 to 36 A, 6 kA Interrupt, 3 Poles, Magnetic Trip


Description

Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 28 to 36 A, 30 kW Power, 50 to 60 Hz Frequency, 6 kA Interrupt, S2 Frame, Magnetic Trip, 520 A Trip, 3 Pole, 3 ph, Screw Connection, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 55 mm W x 149 mm D Dimensions

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specifications

GTIN: 00887621920210

UNSPSC: 39121601

Country of Origin: Germany

Trip Type
Magnetic
Wire Size
18 to 2 AWG
Interrupt Rating
6 kA
Number of Poles
3
Frequency Rating
50 to 60 Hz
Voltage Rating
690 V AC
Weight
5.2 lbs
Enclosure Type
IP20
Dimensions
140 mm H x 55 mm W x 149 mm D
Mounting Type
DIN Rail
Trip Range
520 A
Series
3RV2
Connection Type
Screw
Phase
3
Amperage Rating
28 to 36 A
Power Rating
30 kW
Temperature Rating
-20 to 60 deg C
Frame
S2
BABA Compliant
No
Sold as
EACH
