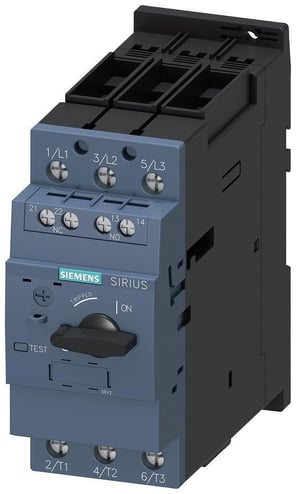

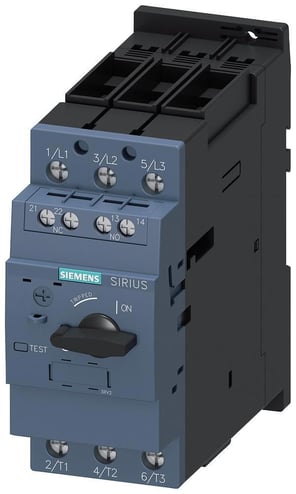

Siemens 3RV20314SA15 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 9.5 to 14 A, 3 kA Interrupt, 3 Poles, Magnetic Trip


Description

Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 9.5 to 14 A, 30 kW Power, 50 to 60 Hz Frequency, 3 kA Interrupt, S2 Frame, Magnetic Trip, 208 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 18 to 3 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 55 mm W x 149 mm D Dimensions

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specifications

GTIN: 00887621920005

UNSPSC: 39121601

Country of Origin: Germany

Number of Poles
3
Frequency Rating
50 to 60 Hz
Voltage Rating
690 VAC
Enclosure Type
IP20
Mounting Type
DIN Rail
Trip Range
208 A
Phase
3
Temperature Rating
-20 to 60 deg C
BABA Compliant
No
Power Rating
30 kW
Amperage Rating
9.5 to 14 A
Connection Type
Screw
Series
3RV2
Dimensions
140 mm H x 55 mm W x 149 mm D
Width
3 in
Weight
46.2 lbs
Auxiliary Contact Rating
1NO-1NC
Interrupt Rating
3 kA
Wire Size
18 to 3 AWG
Trip Type
Magnetic
Frame
S2
Sold as
EACH
