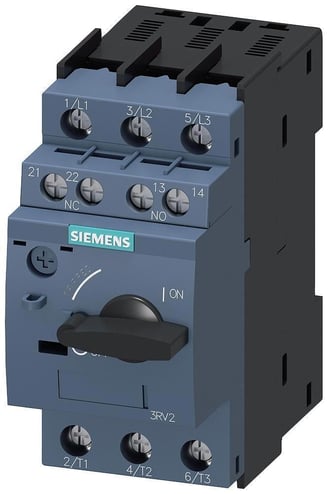

Siemens 3RV20214AA15 Motor Protection Circuit Breaker, 690 VAC, 10 to 16 A, 4 kA Interrupt, 3 Poles, ThermalMagnetic Trip


Description

Siemens Motor Protection Circuit Breaker, 690 VAC, 10 to 16 A, 11000 W Power, 50/60 Hz Frequency, 4 kA Interrupt, 3RV20 Frame, Thermal/Magnetic Trip, 3 Pole, Screw Connection, IP20 Enclosure, Snap-On/DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions

The circuit breakers are suitable for side by side mounting up to 60 deg C. In addition to the usual closed/open circuit breaker positions the tripped position is also indicated. SIRIUS circuit breakers can be connected easily and without any wiring to the SIRIUS contactors and soft starters through a link module. The clear, structured range is electrically, mechanically and optically harmonized to the other families of SIRIUS devices - contactors, soft starters and overload relays. Furthermore, the four sizes cover a current range up to 100 A. this corresponds to a power range up to 45 kW at 400 VAC.

Features

  • S00 and S0 size
  • 20/55/100 kA short circuit breaking capacity Icu at 400 VAC

Specifications

GTIN: 00662643924282

UNSPSC: 39121601

Alternative Part Number: 11033353

Country of Origin: Germany

Trip Type
Thermal/Magnetic
Number of Poles
3
Frequency Rating
50/60 Hz
Weight
0.4 lbs
Enclosure Type
IP20
Amperage Rating
10 to 16 A
BABA Compliant
No
Mounting Type
Snap-On/DIN Rail
Connection Type
Screw
Power Rating
11000 W
Temperature Rating
-20 to 60 deg C
Frame
3RV20
Interrupt Rating
4 kA
Voltage Rating
690 VAC
Width
7.8 in
Dimensions
97 mm H x 45 mm W x 96 mm D
Sold as
EACH
