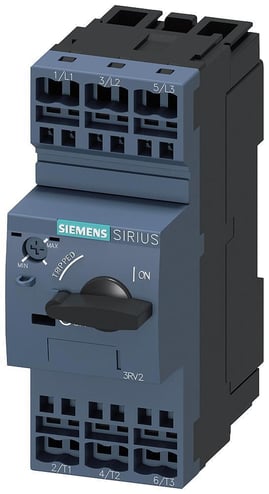

Siemens 3RV20211AA20 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 1.1 to 1.6 A, 100 kA Interrupt, 3 Poles, Class 10 Magnetic Trip


Description

Siemens Motor Protection Circuit Breaker, Type 3RV2, 690 VAC, 1.1 to 1.6 A, 1.1 kW Power, 50/60 Hz Frequency, 100 kA Interrupt, S0 Frame, Class 10 Magnetic Trip, 21 A Trip, 3 Pole, 3 ph, Spring-Loaded Latch-Lock Handle Connection, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 119 mm H x 45 mm W x 96 mm D Dimensions

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specifications

GTIN: 00040892940220

UNSPSC: 39121601

Country of Origin: Germany

Type
Type 3RV2
Trip Type
Thermal Magnetic
Interrupt Rating
100 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
690 V AC
Weight
48 lbs
Enclosure Type
IP20
Dimensions
119 mm H x 45 mm W x 96 mm D
Mounting Type
DIN Rail
Trip Range
21 A
Connection Type
Spring-Loaded Latch-Lock Handle
Phase
3
Amperage Rating
1.1 to 1.6 A
Power Rating
1.1 kW
Temperature Rating
-20 to 60 deg C
Frame
S0
BABA Compliant
No
Wire Size
18 to 8 AWG
Sold as
EACH
