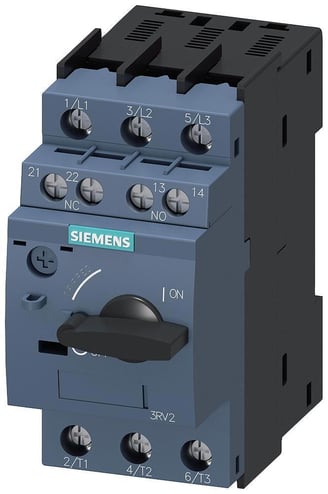

Siemens 3RV20211AA15 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 1.1 to 1.6 A, 100 kA Interrupt, 3 Poles, Magnetic Trip


Description

Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 1.1 to 1.6 A, 1.1 kW Power, 50 to 60 Hz Frequency, 100 kA Interrupt, S0 Frame, Magnetic Trip, 21 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 16 to 12 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specifications

GTIN: 00887621883386

UNSPSC: 39121601

Country of Origin: Germany

Interrupt Rating
100 kA
Number of Poles
3
Frequency Rating
50 to 60 Hz
Voltage Rating
690 V AC
Weight
0
Width
7.6 in
Enclosure Type
IP20
Mounting Type
DIN Rail
Connection Type
Screw
Phase
3
Power Rating
1.1 kW
Temperature Rating
-20 to 60 deg C
BABA Compliant
No
Amperage Rating
1.1 to 1.6 A
Series
3RV2
Trip Range
21 A
Dimensions
97 mm H x 45 mm W x 96 mm D
Auxiliary Contact Rating
1NO-1NC
Wire Size
16 to 12 AWG
Trip Type
Magnetic
Frame
S0
Sold as
EACH
