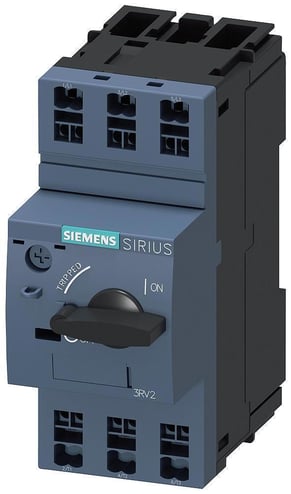

Siemens 3RV20110GA20 Motor Protection Circuit Breaker, 690 VAC, 0.45 to 0.63 A, 100 kA Interrupt, 3 Poles, ThermalMagnetic Trip


Description

Siemens Motor Protection Circuit Breaker, 690 VAC, 0.45 to 0.63 A, 0.25 kW Power, 50/60 Hz Frequency, 100 kA Interrupt, 3RV2/S00 Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Spring Connection, 20 to 12 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 106 mm H x 45 mm W x 96 mm D Dimensions

The new SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three phase motors of up to 18.5 kW at 400 VAC and for other loads with rated currents of up to 40 A.

Features

  • Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
  • Standard switch capacity
  • Class 10 trip
  • 100000 cycles switching

Specifications

GTIN: 00662643921601

UNSPSC: 39121601

Country of Origin: Germany

Trip Type
Thermal Magnetic
Interrupt Rating
100 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
690 V AC
Enclosure Type
IP20
Mounting Type
DIN Rail
Phase
3
Amperage Rating
0.45 to 0.63 A
Temperature Rating
-20 to 60 deg C
Frame
3RV2/S00
BABA Compliant
No
Dimensions
106 mm H x 45 mm W x 96 mm D
Power Rating
0.25 kW
Connection Type
Spring
Wire Size
20 to 12 AWG
Sold as
EACH
