Description

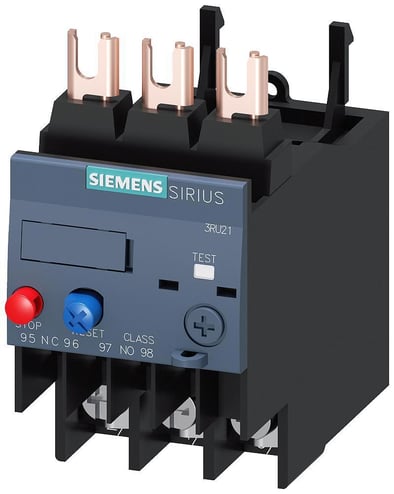

Siemens Overload Relay, 3.5 to 5 A, 1.5 kW at 400 V/2.2 kW at 500 V/4 kW at 690 V Power, 50/60 Hz Frequency, 1NC-1NO Contact Form, 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC, 2 A at 24 VDC, 0.3 A at 60 VDC, 0.22 A at 110/125 VDC, 0.11 A at 220 VDC Contact, 3 Pole, Contactor Mounting, Ring Cable Lug Terminal, Slide Switch Display, IP20 Enclosure, -40 to 70 deg C, 45 mm W x 85 mm D x 85 mm H Dimensions
Features
- Manual/automatic reset
- Auxiliary circuit - ring cable lug
- Class 10 main circuit - ring cable lug
Specifications
GTIN: 00662643919066
UNSPSC: 39122330
Country of Origin: Germany
| Terminal Type | Ring Cable Lug |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Weight | 0.1 lbs |
| Width | 16 in |
| Enclosure Type | IP20 |
| Dimensions | 45 mm W x 85 mm D x 85 mm H |
| Mounting Type | Contactor |
| Amperage Rating | 3.5 to 5 A |
| Contact Form | 1NO-1NC 1 Form A/1 Form B |
| Power Rating | 1.5 kW at 400 V/2.2 kW at 500 V/4 kW at 690 V |
| Temperature Rating | -40 to 70 deg C |
| Display Type | Slide Switch |
| Contact Rating | 3 A at 24/110/120/125 V AC, 2 A at 230 V AC, 1 A at 400 V AC, 2 A at 24 V DC, 0.3 A at 60 V DC, 0.22 A at 110/125 V DC, 0.11 A at 220 V DC |
| BABA Compliant | No |
| Sold as | EACH |
