Description

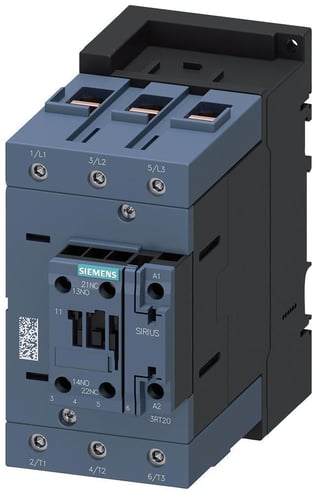

Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 125 VAC Coil, 95 A Maximum Load Current, 45 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50 Hz, 296 VA Pickup, 19 VA Holding, 3NO, 1NO-1NC Auxiliary Contacts, A600/P600 Contact, Power Factor: 0.38/0.61, S3, Screw Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 140 mm H x 70 mm W x 152 mm D
Specifications
GTIN: 00804766406041
UNSPSC: 39121529
Country of Origin: Germany
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Terminal Type | Screw |
| Maximum Load Current | 95 A |
| Number of Poles | 3 |
| Wattage | 296 VA Pickup, 19 VA Holding |
| Frequency Rating | 50 Hz |
| Coil Power Rating | 45 kW at 400 V 3-Phase |
| Size | S3 |
| Weight | 13.9 lbs |
| Width | 2.6 in |
| Enclosure Type | IP00/IP20 |
| Dimensions | 140 mm H x 70 mm W x 152 mm D |
| Coil Voltage | 125 V AC |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Series | 3RT20 |
| Contact Configuration | 3NO |
| Contact Rating | A600/P600 |
| Power Factor | 0.38/0.61 |
| Operating Cycles | 10000000 |
| Number of Auxiliary Contacts | 1NO-1NC |
| BABA Compliant | No |
| Type | 3-Phase Standard |
| Sold as | EACH |
