Description

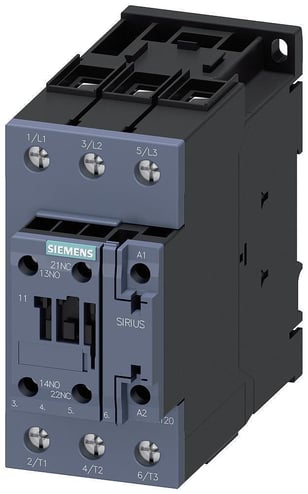

Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 230 VAC Coil, 40 A Maximum Load Current, 18.5 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50 Hz, 190 VA Pickup, 16 VA Holding, 3NO, 1NO-1NC Auxiliary Contacts, A600/P600 Contact, Power Factor: 0.37/0.72, S2, Screw Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 114 mm H x 55 mm W x 130 mm D
Specifications
GTIN: 00887621915605
UNSPSC: 39121529
Alternative Part Number: 13125056
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Terminal Type | Screw |
| Number of Poles | 3 |
| Contact Rating | A600/P600 |
| BABA Compliant | No |
| Number of Auxiliary Contacts | 1NO-1NC |
| Operating Cycles | 10000000 |
| Series | 3RT20 |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Enclosure Type | IP00/IP20 |
| Coil Power Rating | 18.5 kW at 400 V 3-Phase |
| Size | S2 |
| Contact Configuration | 3NO |
| Dimensions | 114 mm H x 55 mm W x 130 mm D |
| Power Factor | 0.37/0.72 |
| Type | 3-Phase Standard |
| Maximum Load Current | 40 A |
| Wattage | 190 VA Pickup, 16 VA Holding |
| Frequency Rating | 50 Hz |
| Weight | 2 lbs |
| Coil Voltage | 230 VAC |
| Sold as | EACH |
