Description

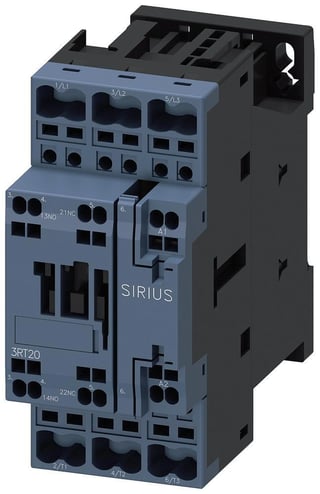

Siemens Power Contactor, Series: 3RT2, 400 VAC Coil, 38 A Maximum Load Current, 77 VA Pickup, 9.8 VA Holding Coil, 3 Pole, 50 Hz Frequency, 18.5 kW Wattage, 1NC-1NO Contact Configuration, Power Factor: 0.82 Closing, 0.25 Holding, S0 Size, Spring Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 97 mm D x 102 mm H Dimensions
The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2NO+2NC (terminal designations acc. to EN 50 012) are available as of size S0, the auxiliary switch block is removable. The size S3 contactors have removable box terminals for the main conductor connections. Ring cable lugs or bars can thus also be connected.
Features
- 10000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
Specifications
GTIN: 00662643916980
UNSPSC: 39121529
Country of Origin: Germany
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Terminal Type | Spring |
| Maximum Load Current | 38 A |
| Number of Poles | 3 |
| Wattage | 18.5 kW |
| Frequency Rating | 50 Hz |
| Coil Power Rating | 77 VA Pickup, 9.8 VA Holding |
| Size | S0 |
| Weight | 18 lbs |
| Enclosure Type | IP20 |
| Dimensions | 45 mm W x 97 mm D x 102 mm H |
| Coil Voltage | 400 V AC |
| Mounting Type | Surface/Threaded/DIN Rail/Snap-On |
| Series | 3RT2 |
| Contact Configuration | 1NO-1NC |
| Power Factor | 0.82 Closing, 0.25 Holding |
| Operating Cycles | 10000000 Cycles |
| BABA Compliant | No |
| Sold as | EACH |
