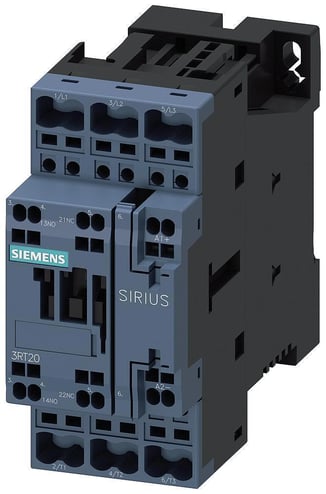

Siemens SIRIUS 3RT20262XB400LA2 3-Phase Non-Reversing Traction Contactor With Integrated Varistor, 24 VACVDC V Coil, 25 A, 3NO Contact, 3 Poles


Description

Siemens SIRIUS Traction Contactor, 3-Phase Non-Reversing, 24 VAC/VDC Coil, 25 A Maximum Load Current, 20 hp Coil, 3 Pole, 40 to 60 Hz Frequency, 11 kW Wattage, Auxiliary Contact, 3NO Contact Configuration, 2 Auxiliary Contacts, A600/Q600 Contact, SZ 0 Size, Spring Loaded Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 102 mm H x 45 mm W x 107 mm D Dimensions

The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable.

Features

  • 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
  • Space is provided for them next to a snap-on auxiliary switch block
  • Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
  • 5 hp at 200/208 VAC, 7-1/2 hp at 220/230 VAC, 15 hp at 460/480 VAC, 20 hp at 575/600 VAC

Specifications

GTIN: 00040892567489

UNSPSC: 39121529

Country of Origin: Germany

Type
3-Phase Non-Reversing
Operating Temperature
-40 to 70 deg C
Terminal Type
Spring Loaded
Maximum Load Current
25 A
Number of Poles
3
Wattage
11 kW
Frequency Rating
40 to 60 Hz
Coil Power Rating
20 hp
Size
SZ 0
Weight
118 lbs
Enclosure Type
IP20
Dimensions
102 mm H x 45 mm W x 107 mm D
Coil Voltage
24 V AC/DC
Mounting Type
DIN Rail/Snap-On/Threaded
Contact Configuration
3NO
Contact Rating
A600/Q600
Operating Cycles
10000000 Cycles
Contact Type
Auxiliary
Number of Auxiliary Contacts
2
BABA Compliant
No
Sold as
EACH
