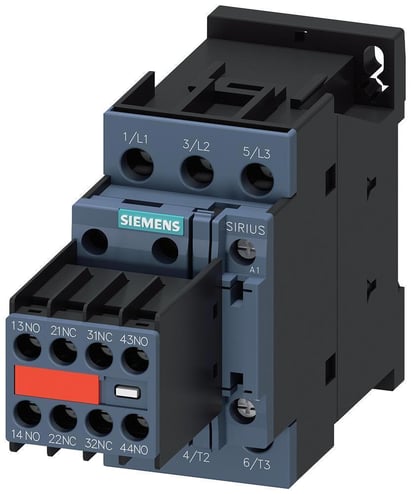

Siemens 3RT20261CK643MA0 3RT2 Power Contactor With Inserted Varistor, 110120 VAC V Coil, 25 A, 2NO-2NC Contact, 3 Poles


Description

Siemens Power Contactor, Series: 3RT2, 110/120 VAC Coil, 25 A Maximum Load Current, 81/79 VA Pickup, 10.5/8.5 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 11 kW Wattage, 2NO-2NC Contact Configuration, Power Factor: 0.72/0.74 Closing, 0.25/0.28 Holding, S0 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 141 mm D x 85 mm H Dimensions

The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2NO+2NC (terminal designations acc. to EN 50 012) are available as of size S0, the auxiliary switch block is removable. The size S3 contactors have removable box terminals for the main conductor connections. Ring cable lugs or bars can thus also be connected.

Features

  • 10000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
  • 81 VA at 50 Hz/79 VA at 60 Hz pick-up/10.5 VA at 50 Hz/8.5 VA at 60 Hz holding power AC
  • Captive auxiliary switch for SUVA applications

Specifications

GTIN: 00040892634631

UNSPSC: 39121529

Country of Origin: Germany

Terminal Type
Screw
Number of Poles
3
Frequency Rating
50/60 Hz
Enclosure Type
IP20
Dimensions
45 mm W x 141 mm D x 85 mm H
Coil Voltage
110/120 VAC
Contact Configuration
2NO-2NC
Operating Cycles
10000000 Cycles
BABA Compliant
No
Power Factor
0.72/0.74 Closing, 0.25/0.28 Holding
Series
3RT2
Coil Power Rating
81/79 VA Pickup, 10.5/8.5 VA Holding
Maximum Load Current
25 A
Operating Temperature
-25 to 60 deg C
Wattage
11 kW
Size
S0
Mounting Type
Surface/Threaded/DIN Rail/Snap-On
Sold as
EACH
