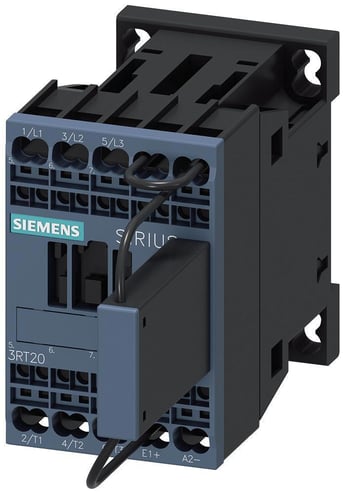

Siemens SIRIUS 3RT20172LJ820LA0 3-Phase Standard Traction Contactor With Integrated Varistor, 72 VDC V Coil, 12 A, 3NO Contact, 3 Poles
Siemens SIRIUS 3RT20172LJ820LA0 3-Phase Standard Traction Contactor With Integrated Varistor, 72 VDC V Coil, 12 A, 3NO Contact, 3 Poles
MPN 3RT20172LJ820LA0
ASPN SIE3RT20172LJ820LA0
UPC 40892957624
Description
Specifications
GTIN: 00040892957624
UNSPSC: 39121529
Country of Origin: Germany
| Terminal Type | Spring Loaded |
|---|---|
| Number of Poles | 3 |
| Number of Auxiliary Contacts | 1NC |
| BABA Compliant | No |
| Series | 3RT20 |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Dimensions | 70 mm H x 45 mm W x 117 mm D |
| Enclosure Type | IP20 |
| Size | S00 |
| Wattage | 13 W DC Closing, 4 W DC Holding |
| Maximum Load Current | 12 A |
| Type | 3-Phase Standard |
| Operating Cycles | 30000000 |
| Contact Rating | A600/Q600 |
| Contact Configuration | 3NO |
| Operating Temperature | 40 to 60 deg C |
| Coil Power Rating | 5.5 kW at 400 V 3-Phase |
| Weight | 0.4 lbs |
| Coil Voltage | 72 VDC |
| Sold as | EACH |
