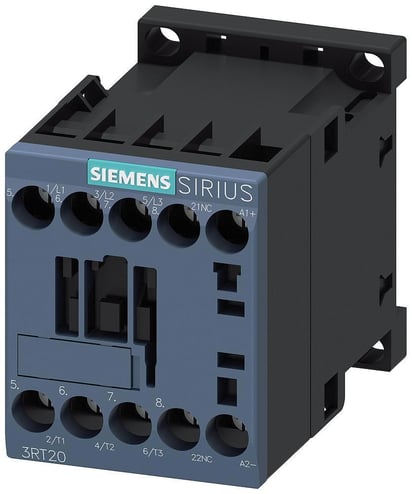

Siemens SIRIUS 3RT20171XB420LA2 3RT2 3-Phase Traction Contactor, 24 to 34 VDC V Coil, 12 A, 1NC Contact, 3 Poles
Siemens SIRIUS 3RT20171XB420LA2 3RT2 3-Phase Traction Contactor, 24 to 34 VDC V Coil, 12 A, 1NC Contact, 3 Poles
MPN 3RT20171XB420LA2
ASPN SIE3RT20171XB420LA2
UPC 195125085008
Description
Specifications
GTIN: 00195125085008
UNSPSC: 39121529
Country of Origin: Germany
| Type | 3-Phase |
|---|---|
| Operating Temperature | -40 to 70 deg C |
| Terminal Type | Screw |
| Maximum Load Current | 12 A |
| Number of Poles | 3 |
| Wattage | 5.5 kW |
| Coil Power Rating | 4 W Closing, 0.95 W Holding |
| Size | S00 |
| Weight | 85.7 lbs |
| Enclosure Type | IP20 |
| Dimensions | 58 mm H x 45 mm W x 73 mm D |
| Mounting Type | Side by Side/Snap-On/Surface |
| Contact Configuration | 1NC |
| Contact Rating | A600/Q600 |
| Operating Cycles | 30000000 cycles |
| Contact Type | Auxiliary |
| Number of Auxiliary Contacts | 1 |
| BABA Compliant | No |
| Series | 3RT2 |
| Coil Voltage | 24 to 34 V DC |
| Sold as | EACH |
