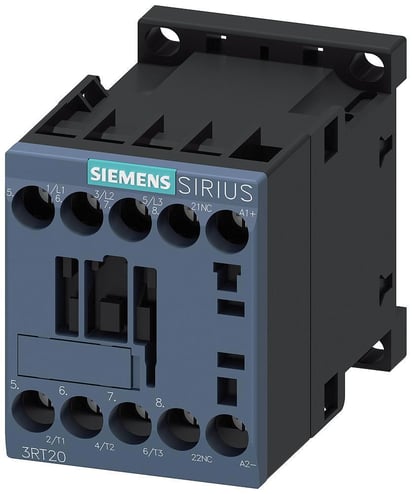

Siemens SIRIUS 3RT20171FB42 3-Phase Non-Reversing Power Contactor With Integrated Diode, 24 VDC Coil, 12 A, 3NO Contact, 3 Poles


Description

Siemens SIRIUS Power Contactor, 3-Phase Non-Reversing, 24 VDC Coil, 12 A Maximum Load Current, 10 hp Coil Power Rating, 3 Poles, 5.5 kW, Auxiliary Contact, 3NO, 1 Auxiliary Contacts, A600/Q600 Contact, SZ 00, Screw Terminal, IP20, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 58 mm H x 45 mm W x 73 mm D

The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable.

Features

  • 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
  • Space is provided for them next to a snap-on auxiliary switch block
  • The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
  • 3 hp at 200/208 VAC and 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC

Specifications

GTIN: 00662643911268

UNSPSC: 39121529

Country of Origin: Germany

Type
3-Phase Non-Reversing
Operating Temperature
-25 to 60 deg C
Terminal Type
Screw
Maximum Load Current
12 A
Number of Poles
3
Wattage
5.5 kW
Coil Power Rating
10 hp
Size
SZ 00
Weight
8 lbs
Width
9.1 in
Enclosure Type
IP20
Dimensions
58 mm H x 45 mm W x 73 mm D
Coil Voltage
24 V DC
Mounting Type
DIN Rail/Snap-On/Threaded
Contact Configuration
3NO
Contact Rating
A600/Q600
Operating Cycles
30000000 Cycles
Contact Type
Auxiliary
Number of Auxiliary Contacts
1
BABA Compliant
No
Sold as
EACH
